| 型號 | Wector? MF10 | Wector? MF20 | Wector? MF30 | Wector? MF50 | Wector? MF80 | Wector? MF120 | Wector? MF150 | Wector? MF180 | Wector? MF200 | Wector? MF220 | Wector? MF250 | 測試標準 |
| 顏色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 灰色 | 目視 |
| 厚度 | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | 0.05 ~ 0.5mm | ASTM D374 |
| 密度 | >3.0g/cm3 | >2.1g/cm3 | >2.1g/cm3 | >2.1g/cm3 | >2.1g/cm3 | >2.7g/cm3 | >2.7g/cm3 | >2.7g/cm3 | >2.7g/cm3 | >2.7g/cm3 | >2.7g/cm3 | ASTM D792 |
| 磁導率μ′ (1MHz) | 10±5 | 20±10 | 30±10 | 50±10 | 80±10 | 120±10 | 150±20 | 180±20 | 200±20 | 220±20 | 250±25 | GB/T 32596 |
| 表面電阻率 | >1x106Ω/sq | >1x106 Ω/sq | >1x106Ω/sq | >1x106 Ω/sq | >1x106Ω/sq | >1x106 Ω/sq | >1x106Ω/sq | >1x106 Ω/sq | >1x106Ω/sq | >1x106 Ω/sq | >1x106Ω/sq | ASTM D257 |
| 適用中心頻率 | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | 10MHz~6GHz | GB/T 32596 |
| 適用溫度 | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | -40 ~ +120℃ | GB/T 2423.22 |
| 膠粘性 | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | T 0.01mm >600 gf T ≥0.03mm >1000gf | ASTM D3359 |
| 存儲條件 | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | 0 ~ 30℃ / <60% RH | - |
| 保存期限 (不含膠) | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | 12個月 | - |
| RoHS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | IEC 62321 |
| Halogen | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | EN14582 |
| REACH | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | PASS | EN14372 |
? The product adds
a conductive layer to the magnetic layer, which can exert the noise suppression
effect of the conductive layer.
? The product is
thin and light, easy to process and cut, can be installed in a small space and
a variety of sizes and shapes.
? Flame retardant,
high temperature resistance, good flexibility.
? Halogen-free,
lead-free, RoHs compliant.
? Improved
reception sensitivity of electromagnetic induction.
? Electromagnetic
noise countermeasures for various electronic devices.
? Near-field
environment, consumer electronics electromagnetic interference solutions.
? Countermeasures
for the far-field environment of 5G communications and other high-frequency
devices.

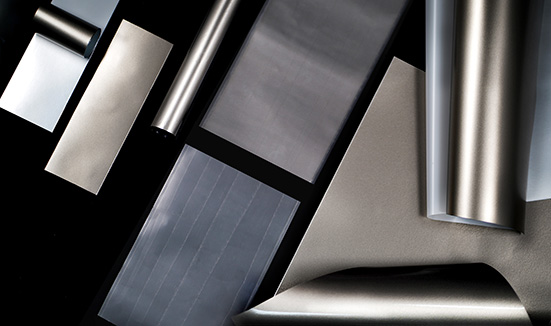

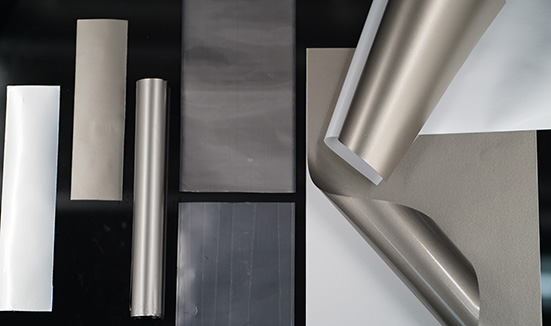

? Sheet product:
210*300mm or according to customer Requirements
? Coil products:
W300 or according to customer requirements
Customized
packaging according to customer needs
This product is
valid for 12 months
Store in a ventilated, cool, dry place, do not contact with open flame
This product is non-toxic, stored and transported as non-dangerous goods
